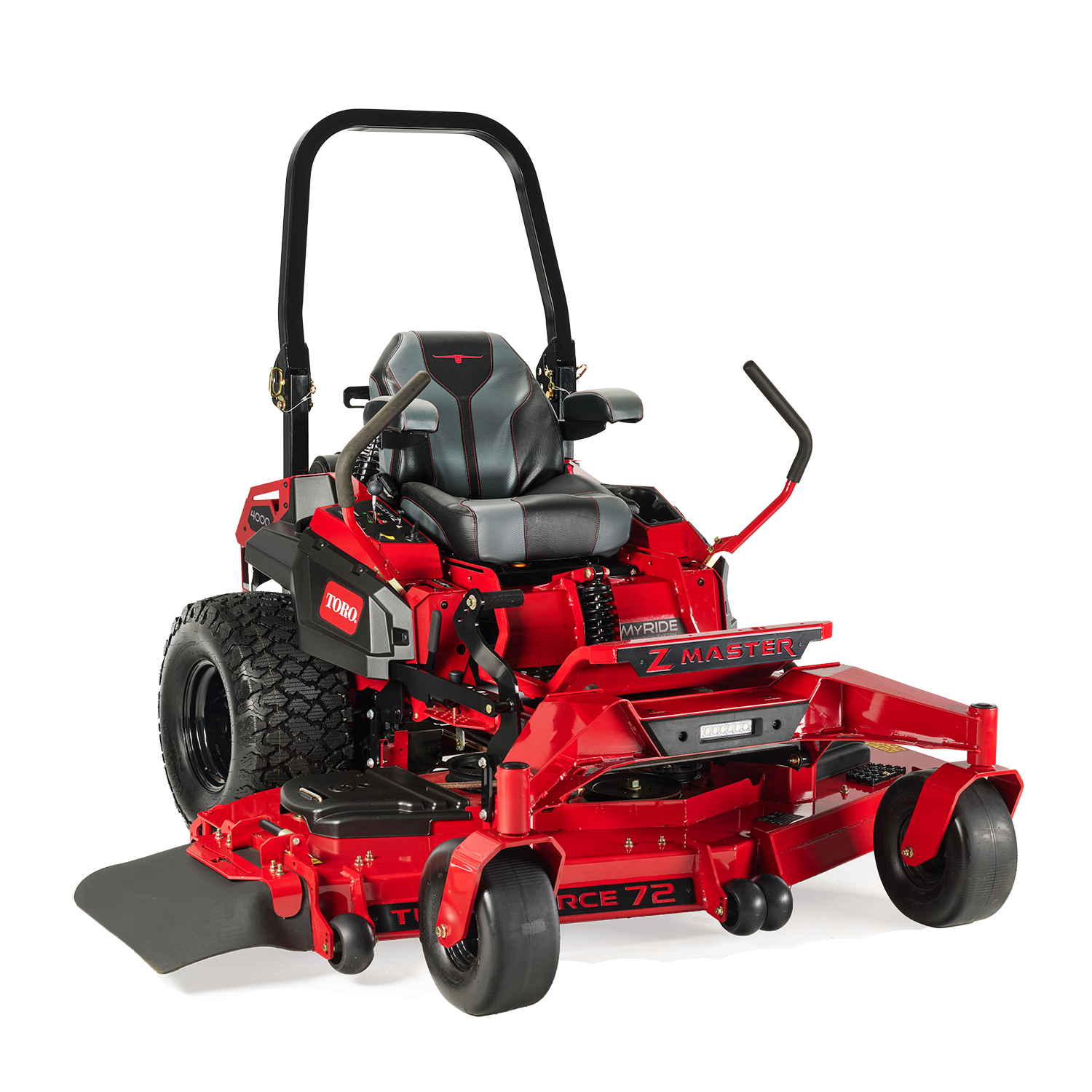

NEW 72″ (183 cm) Z Master 4000 Series MyRIDE® HDX
MyRIDE® Suspension System
74024$26,499inc GST
Key product specifications
- Deck: 72″ (183cm)
- Power: 35 hp*
- Engine: Kawasaki FX1000V (999 cc) with Heavy-Duty Donaldson® Canister-Style Air Cleaner
- Feature: MyRIDE® Suspension System
- 5 Years / 1,250 Hours limited warranty
Key product specifications
- Deck: 72″ (183cm)
- Power: 35 hp*
- Engine: Kawasaki FX1000V (999 cc) with Heavy-Duty Donaldson® Canister-Style Air Cleaner
- Feature: MyRIDE® Suspension System
- 5 Years / 1,250 Hours limited warranty
- Offers
- Overview
- Features
- Specifications
Up to 1000 days interest free‡
Up to 1000 days interest free‡~ on selected Ride-on and Stand-on mowers.
Click here to apply now!
Unleash power, comfort, and confidence like never before with the 183 cm (72″) Z Master® 4000 HDX with MyRIDE® Suspension System. Dominate any job with the relentless 35 HP* Kawasaki FX1000 engine and legendary TURBO FORCE® cutting deck, reinforced with heavy-duty commercial-grade hydros, and supported by the 66 cm (26″) Voodoo Trac™ tyres. Plus, with the hour meter, USB ports, phone holder, and cup holder, you’ll have everything you need to conquer the day in comfort.
*The gross horsepower of these engines was laboratory rated at 3,600 RPM by the engine manufacturer in accordance with SAE J1940 and SAE J1995. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly different.
MyRIDE® Suspension System
No more rocky rides. Save your body from the toughest terrain and avoid slow mowing speeds with the MyRIDE® Suspension System. Enjoy a more comfortable ride, keeping you productive and feeling fresh.
Rubber Discharge Chute
Trim close without damaging landscape structures or your chute.
TURBO FORCE® Cutting Deck
Enjoy years of reliable performance with a fully tubular frame and 7-gauge steel deck.
66 cm (26″) Voodoo Trac™ Drive Tyres
Get the ultimate in aggressive tread and styling and survey the task from a higher-vantage-point with 66 cm Voodoo Trac™ Drive Tyres.
LED Headlights
Powerful illumination for after-hours work.
Dual Capture Anti-Scalp Rollers
Intelligently engineered dual capture anti-scalp rollers ensure the highest quality of cut in the harshest terrain you can throw at it.
Clear Sightline to Rear Tyres
Clear sightline to rear tyres for enhanced control so you can clear a path without tyre spin.
Up to 19.3 km/h
Get more done with ground speeds up to 19.3 km/h without reducing cut quality.
Deck Step Plate
Keep your grip and remove excess mud from your shoes with a deck step plate.
Phone and Cup Holder
Keep your phone and drink at arm’s reach.
USB Ports
USB ports to help you stay charged on the job.
| Engine | 35 hp* Kawasaki FX1000V (999 cc) with Heavy-Duty Donaldson® Canister-Style Air Cleaner |
| Fuel Capacity | 37.9 litres |
| Blade Tip Speed | 18,500+ ft/min |
| Caster Tyres | 38 x 16.5 – 15.2 cm (15" x 6.5" - 6") Pneumatic |
| Deck Design | 183 cm (72") 7-gauge high-strength steel TURBO FORCE® with bull-nose bumper |
| Drive Tyres | Voodoo Trac™ 66 x 26.7 – 30.5 cm (26” x 10.5” – 12”) |
| Clutch | Electromagnetic |
| Discharge Chute | Rubber |
| Engine Displacement | 999cc |
| Height of Cut | 3.8 - 14 cm in 6.4 mm increments |
| Ground Speed | Up to 19.3 km/h |
| Horsepower | 35 hp* |
| Hour Meter | Standard |
| ROPS | Folding |
| Seat | Deluxe Suspension with Armrests |
| Spindle Bearings | Maintenance-Free |
| Spindle Housing | 22.9 cm (9") Diameter Aluminium |
| Steering Controls | 3.6 cm (1.4") Diameter Grips; Adjustable, Dampened |
| Transmission | ZT-5400 Integrated Pumps & Wheel Motors |
| Warranty | 5 years/1250 hours limited warranty (whichever occurs first) |
| Disclaimer | *The gross horsepower of these engines was laboratory rated at 3,600 RPM by the engine manufacturer in accordance with SAE J1940 and SAE J1995. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly different. |
